Product Specification V1.0
Nordic Semiconductor nRF52832 BLE SOC
- 2.4 GHz transceiver
- ARM@CortexTm-M4F 32 bit processor
- 512 kB flash program memory
- 64 KB RAM
Bosch@BMX160 9-Axis Accelerometer/Gyroscope/Magnetometer
- 土2g/+4g/+8g/+16g selectable scale
- 125/250/500/1000/2000 degrees/sec
- Industry Leading 900uA active current gyro
Firmware-enabled 9-axis sensor fusion
Lithium Ion/Polymer battery charger
Micro-USB rechargeable
Bright RGB LED
Miniature push-button switch

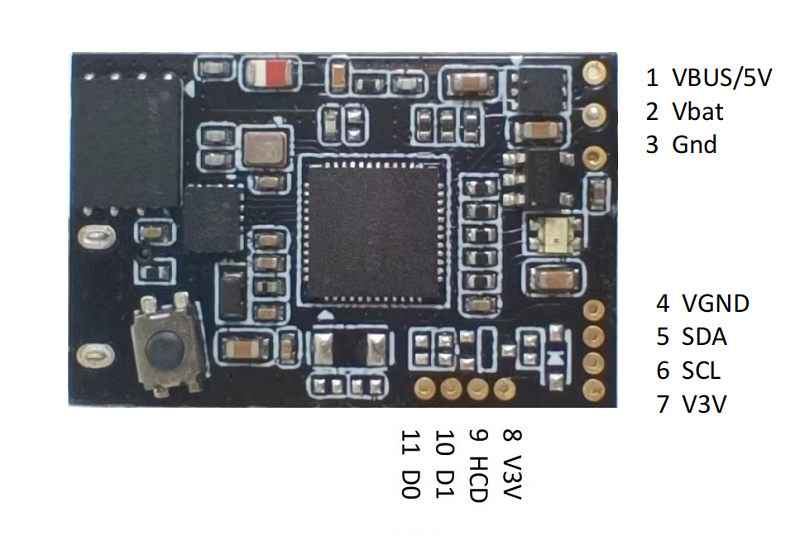

I/O Expansion
- Digital I2C Bus
- 4 Analog/Digital Pins
- 3 Digital Pins
Tiny 26mm x 17mm x 2.5mm form factor
